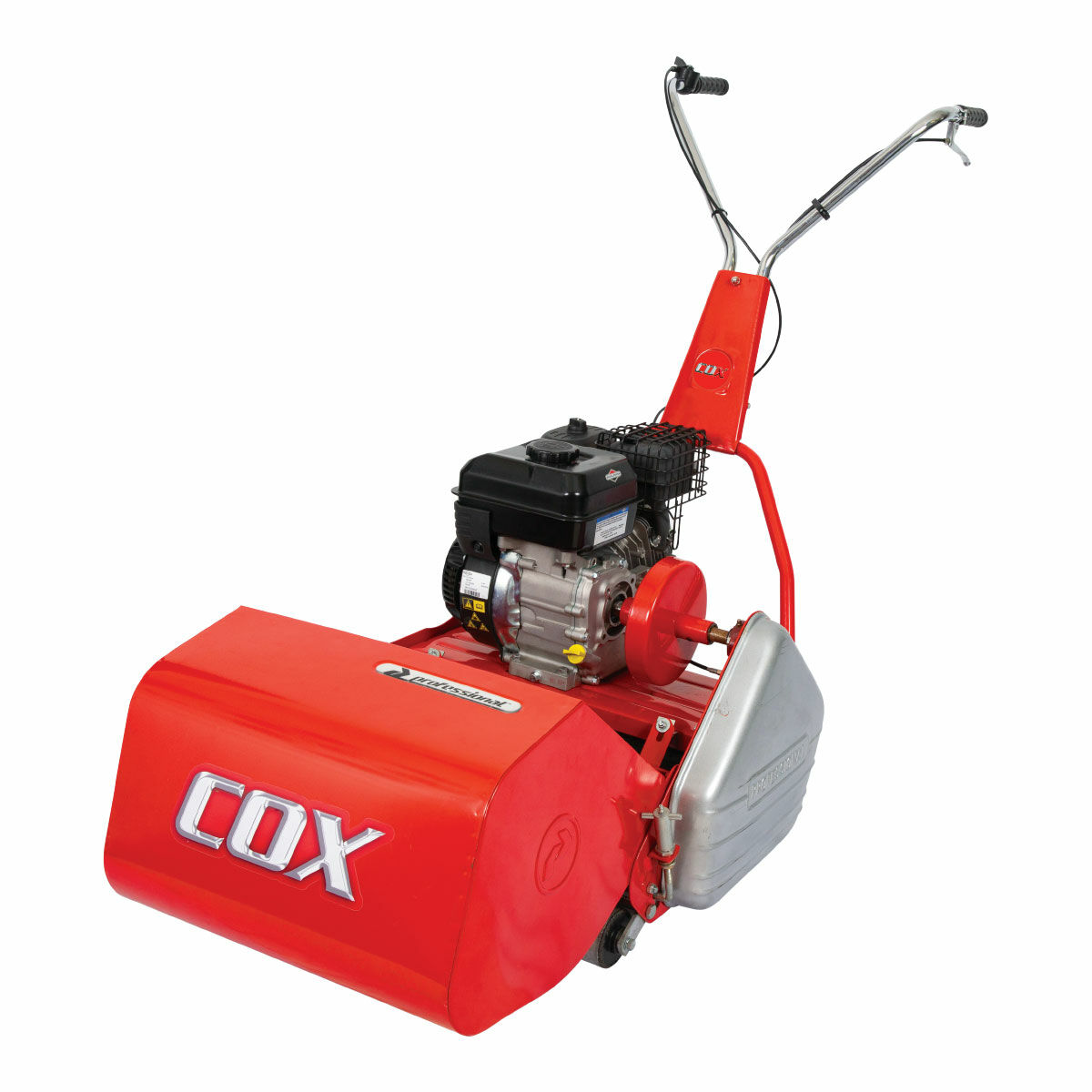

For those enthusiasts who know the difference between cutting grass and cultivating lawns (and secretly want to be a bowling green curator) our built for life Professional range of cylinder mowers have the most advanced features to provide a perfectly smooth cut every time.

Timeless design, precision engineered, all steel construction protected with hard wearing powder coating, cutting widths from 14" to 25", powered by world class Briggs & Stratton four stroke engines and the option of three high tensile blade cutting systems will satisfy any discerning lawn connoisseur.

Key Features

High tensile 6, 9 and 12 cylinder blade cutting systems for fine, precision mowing results.
30–50L capacity all-steel grass catchers for robust, long-lasting performance.
Differential split ribbed rubber rear drive roller for excellent traction and striping.
Easy-engage centrifugal clutch driving both blades and forward movement.
Long-life sealed bearings with grease nipples mounted in cast iron housings for durability.
Solid all-steel front roller for a smooth, even finish across the lawn surface.
Fully sealed cast aluminium chain cover protects moving parts from grass, dust and dirt.
Micro height adjuster (5–35 mm) for precise control over cutting height.
All-steel chassis with hard-wearing powder coat finish for strength and corrosion resistance.
Powered by Briggs & Stratton OHV four-stroke engines across the range.
Backed by a 4-year domestic warranty (conditions apply) for peace of mind.

Specifications

Engine
Models

Cylinder 14 / Cylinder 17 / Cylinder 20 / Cylinder 25
Engine

Briggs & Stratton 550 OHV (14" & 17") / Briggs & Stratton 750 OHV (20" & 25")
Construction
Steel Chassis

Solid 3.5 mm steel chassis (all models)
Chain Cover

Sealed aluminium chain cover
Front Roller

Solid all-steel front roller
Drive & Bearings
Bearings

Sealed bearings with grease nipples
Drive Assembly

Precision engineered drive assembly
Clutch

Centrifugal clutch
Rear Roller

Split ribbed rubber rear drive rollers
Cylinder & Cutting
Standard Cutting System

High tensile steel blade cylinder, 6-blade (all models)
Cutter Width

355 mm (14") / 435 mm (17") / 510 mm (20") / 630 mm (25")
Height Adjustment

Micro height adjuster 5–35 mm
Optional Extra Cylinders

Cylinder 17 & 20: 9-blade option • Cylinder 25: 9- and 12-blade options
Optional Bottom Blade

Optional fine cut bottom blade available
Grass Catcher
Type

Solid steel grass catcher
Capacity

30 L (14") / 35 L (17") / 40 L (20") / 50 L (25")
Controls & Ergonomics
Handles

Chrome plated ergonomic handles
Performance
Suitable Lawn Area

Up to 400 m² (14") / 400–1000 m² (17") / 750–1500 m² (20") / Over 1000 m² (25")
Warranty
Domestic Warranty

4 Years* (conditions apply)
